The tutorial and Q&A of  XPROTO-ATX V2

The tutorial and Q&A of XPROTO-ATX V2

Because XPROTO-V2 has adjusted a lot of details compared to the existing installation video tutorial

We have created a new supplemental video, please visit the link below to view it



https://www.youtube.com/watch?v=BW9c3AJ0Kf4&t=1s



Listed below are the differences between XPROTO-ATX and the installation video

下文是与安装视频不同之处



1:Pcie Riser Cable Bracket Fixed Mode Adjustment   PCIE线固定系统调整

(The height of the graphics card is lowered and moved outward to strengthen the strength of the screw hole)

Adjusted mounting nodes can secure more graphics card sizes more firmly

The B2 copper pillar is canceled, and all the copper pillars on the chassis are B1



显卡延长线支架固定方式有调整。现在能够固定更多尺寸的显卡并且更为牢固

B2铜柱取消,机箱上所有铜柱都是用B1



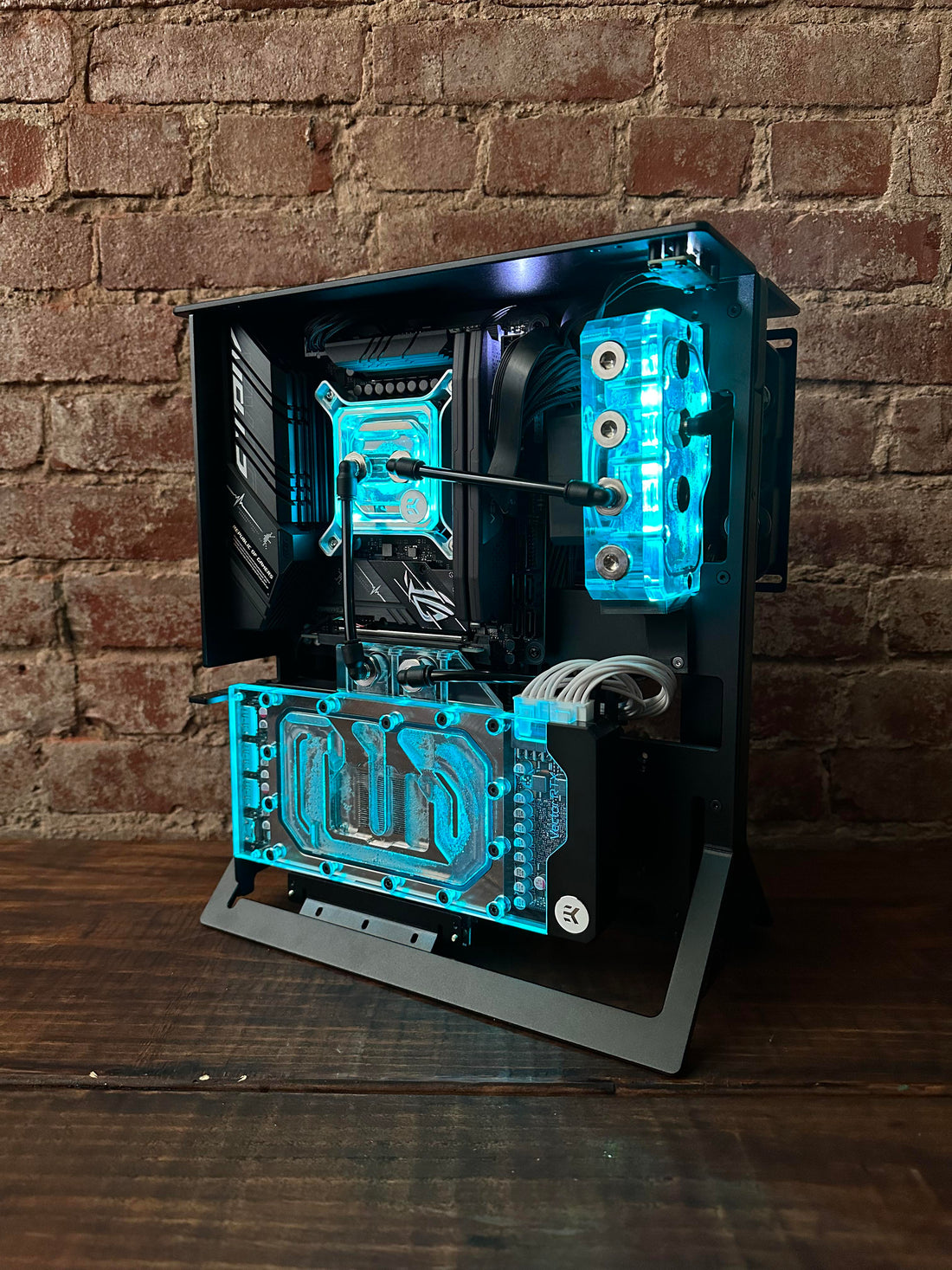

In the image above, the graphics card fixing part is installed inside the case. In some special cases, you may need to install the extension cable holder on the outside of the chassis ,  Or  install the graphics card IO baffle side on the lower part of the chassis baffle like the image below

上图中,显卡固定件安装在机箱内部。在某些特殊情况下,可能需要在机箱外侧安装延长线座,或者像下图这样在机箱挡板下部安装显卡IO挡板侧





2:HDD fixation system adjustment  硬盘固定系统调整

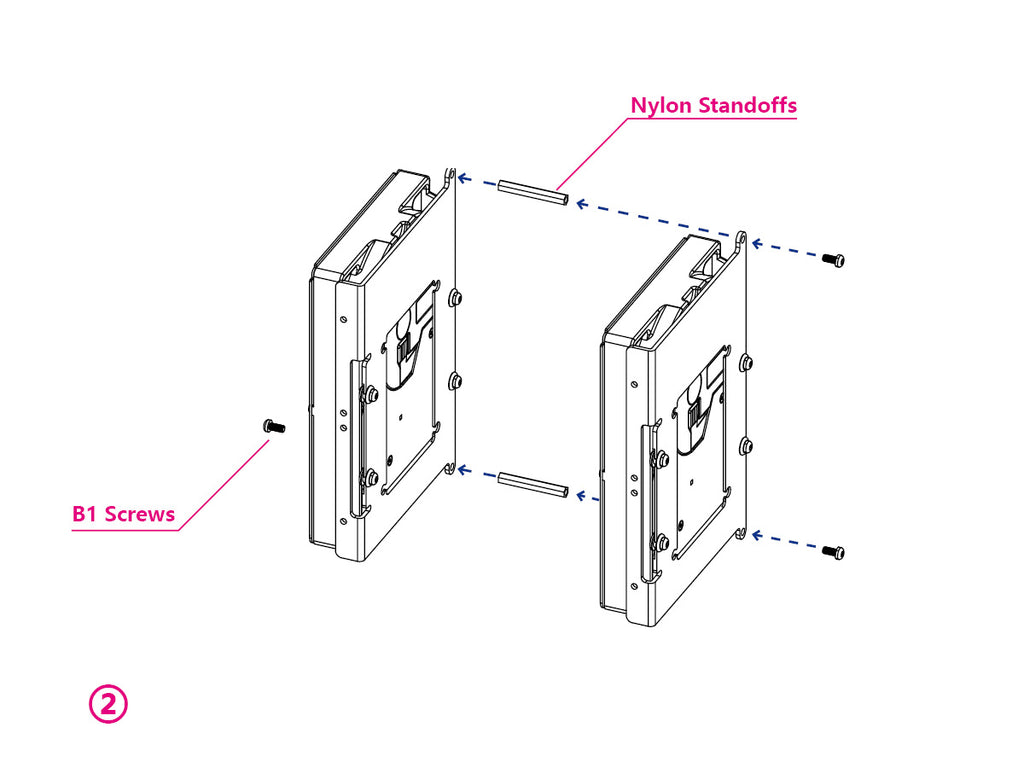

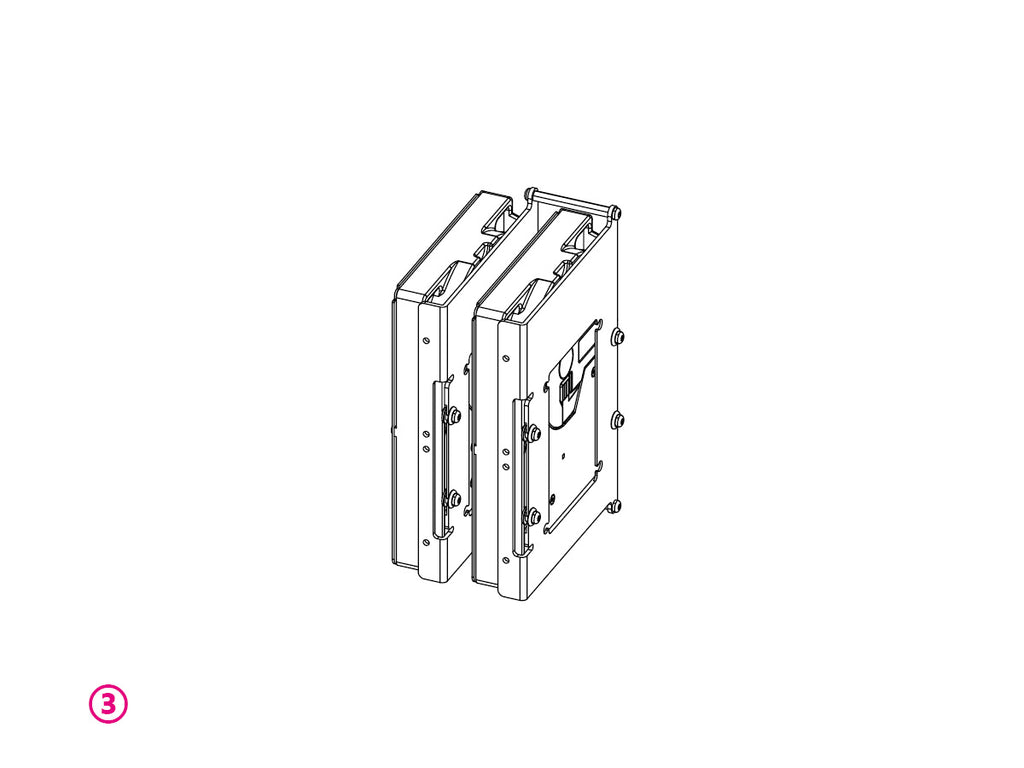

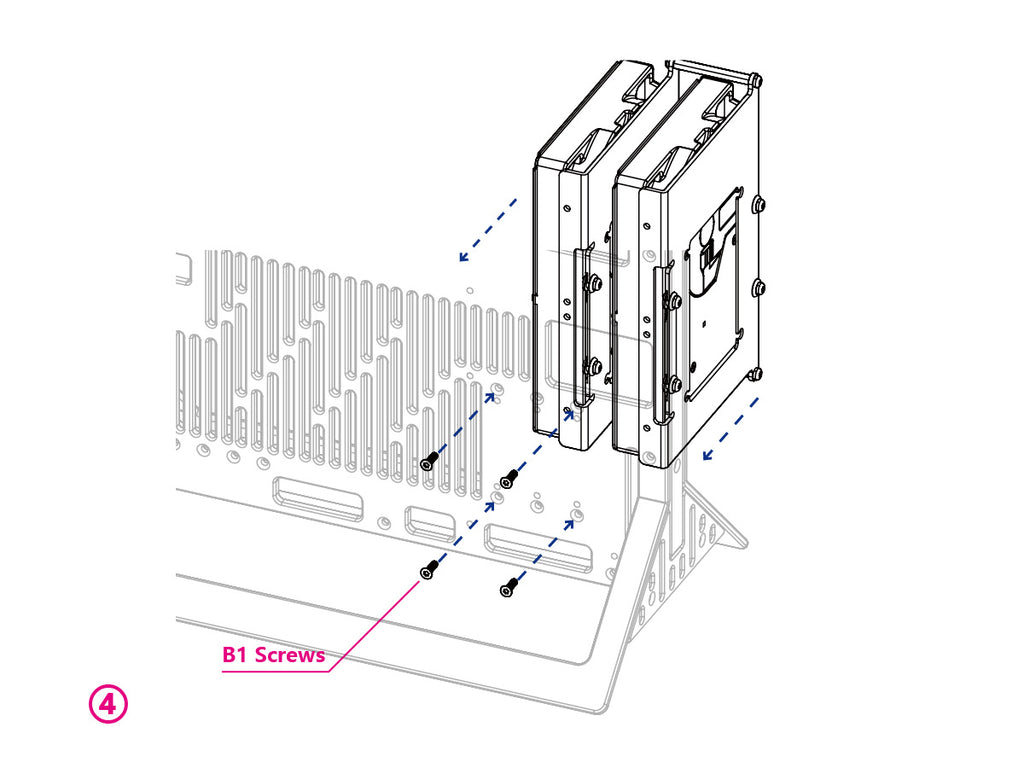

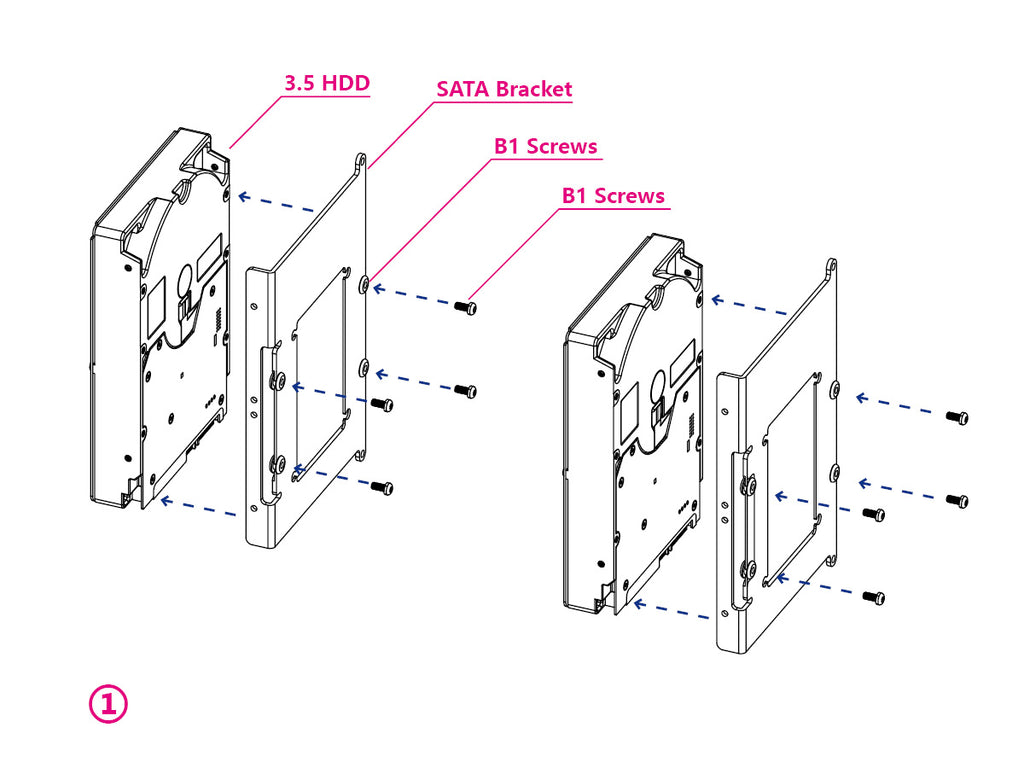

     Now you don't need to remove the motherboard to fix the 3.5HDD bracket  (Refer to the installation form of the 2.5-inch hard disk bracket in the video)

     3.5 hard drive bracket can install 2.5 inch hard drive at the same time

     You can also fix two 2.5-inch hard drives  in the middle frame

     现在您无需拆卸主板即可固定 3.5HDD 支架(参考视频中2.5英寸硬盘支架的安装形式)

     3.5寸硬盘支架可同时安装2.5寸硬盘

     中框中可以安装2.5英寸硬盘











3:The side water-cooling bracket can be installed non-centered to avoid collision with the graphics card    侧面水冷支架可以非居中安装,避免与显卡碰撞













For more installation questions please contact in the online chat system

中国大陆地区用户可通过淘宝聊天系统或微信(wechat) 15852475261 获得技术支持



 Q&A:

Q:  Would a tower cpu cooler be possible to use?

A:  Yes

Q: Does the xproto-atx come with one or two brackets for radiators?

A:  Xproto-ATX comes with 2 brackets , side one and back one
